CZCJ Jacket blazer suit press machine equipment vertical press collar master Shanghai Jiejiabaigu
I. Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.
II. Automatic CZBJ series press machine (legger)

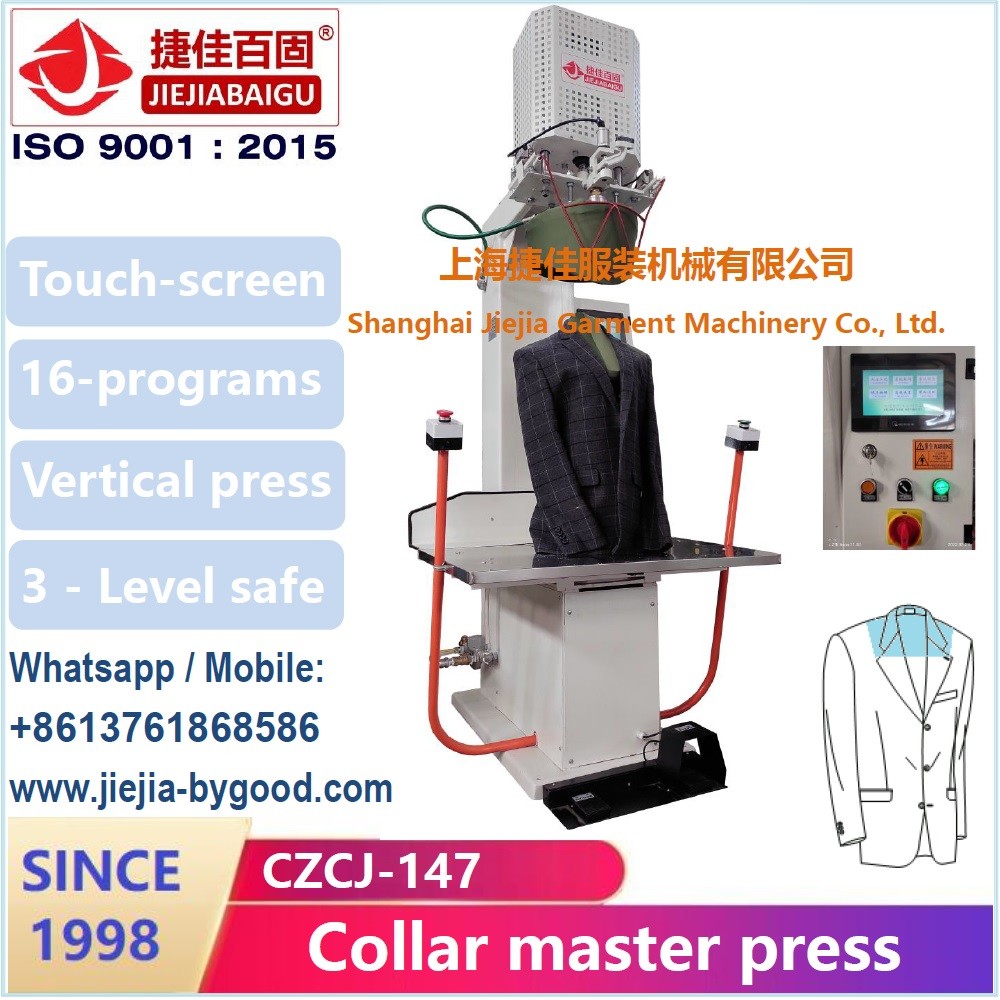

| Model | CZCJ-147 |
| Control | Automatic LED PLC (8 programs) or |
| | Optional: touch-screen PLC (16 programs) |
| Buck name | collar |
| Buck material | Aluminium |
| Total pressure | 300kg |
| Heat method | Steam chamber |
| | stainless steel pipe |
| Steam spray | Top buck, bottom buck, or both |
| Vacuum | Bottom buck, top buck, or both |
| | Standard: 2” vacuum pipe system |
| | Optional 1: 1.5kw 220V build-in vacuum pump |
| | Optional 2: 0.75kw 380V build-in vacuum pump |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| | Standard: 1/2” pipe |
| | Optional: build-in steam boiler 12kw 380V |
| | Spray by Japan design big volume steam |
| Compress air | 0.4-0.6MPa (15L/min) |
| | Standard: 8mm pipe |
| | Optional: build-in air compressor 1.5kw 220V |
| Electric power | 220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.6kw (with build-in vacuum pump) 380V/1PH/50hz, 0,85kw (with build-in vacuum pump) |
| Drained water | 1/2” |
| Dimension | 900x1200x1350mm |
| Safety | 3 levels |
| Net weight | 370kg |
| Package | Wooden case |
III. Feature
3.1 vertical
Pressure 300kg
3.2 Aluminium buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close & press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 trap
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for: suit / uniform / jacket
3.13 ironing part: collar
3.14 optional buck with electric heating
Top buck with electric heating
bottom buck with electric heating
Or both
IV. Full suits final press machine
| NO. | Model | Des.of machine | Dimension: mm |

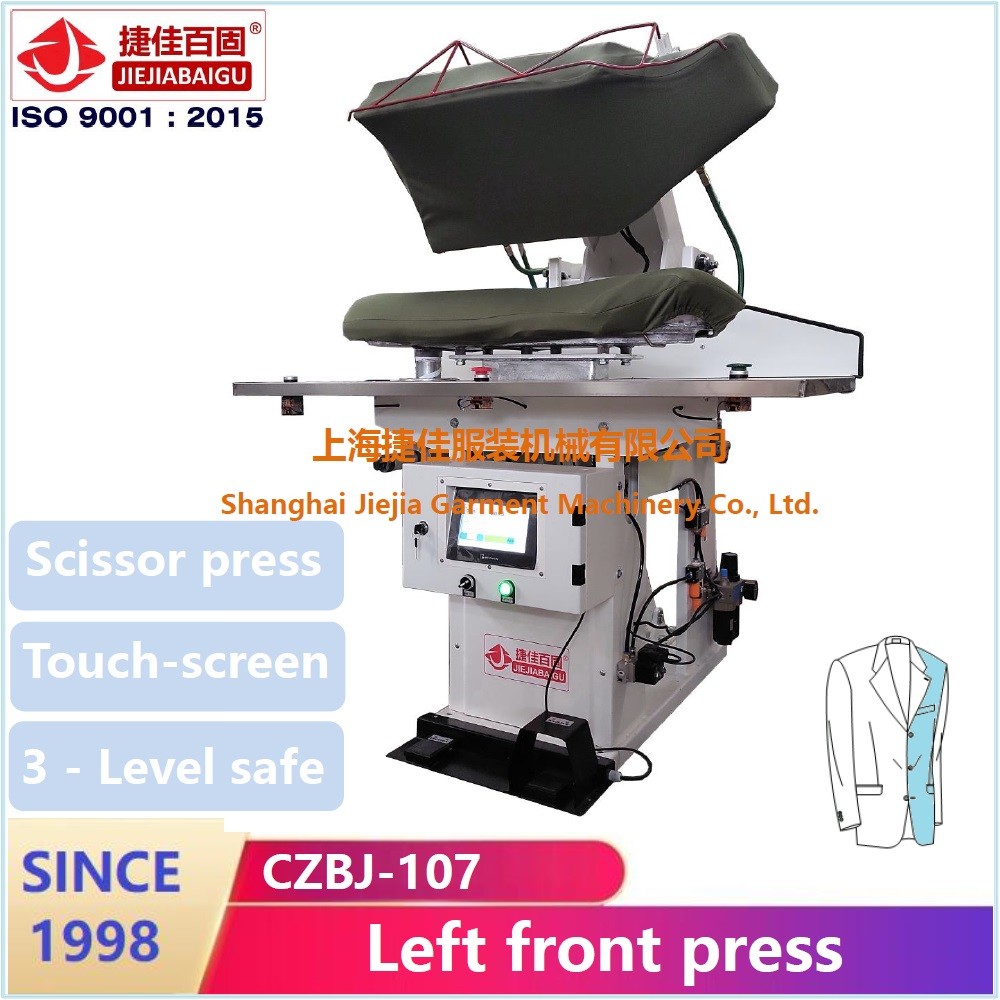

| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |

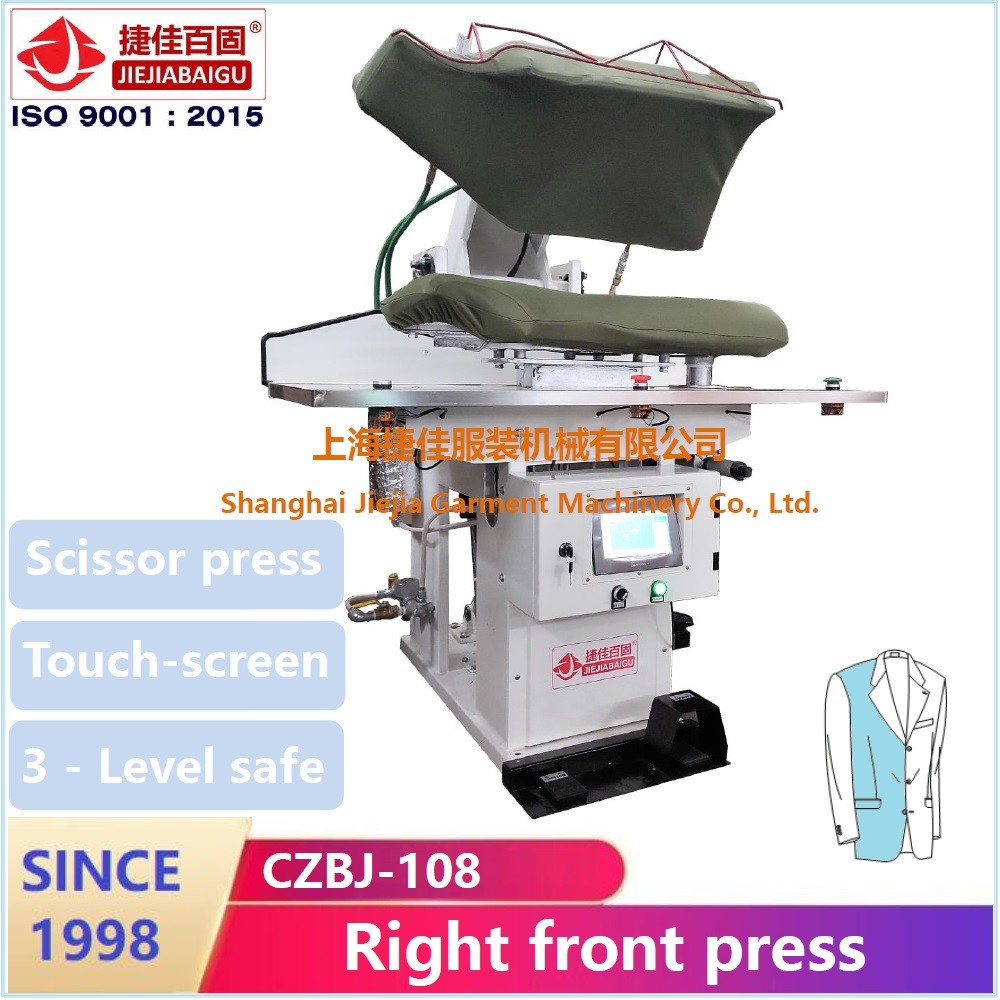

| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |

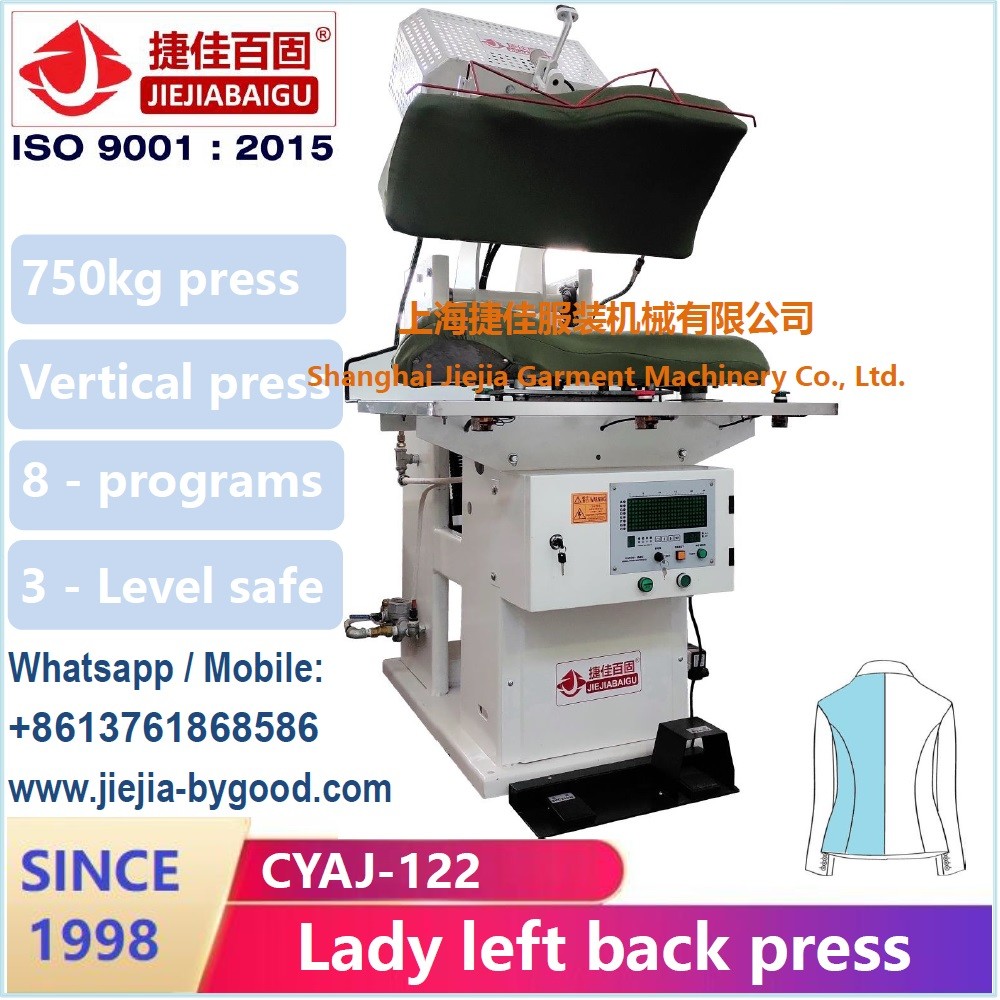

| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |

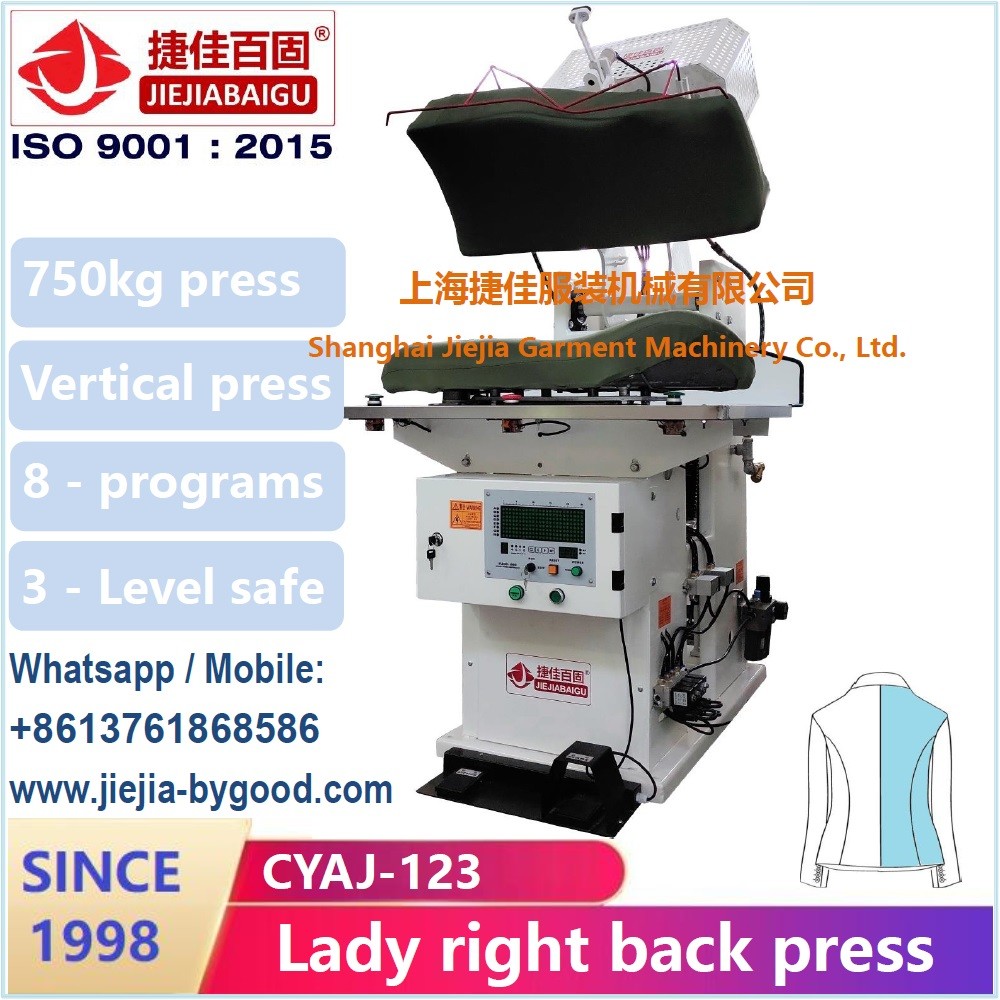

| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |

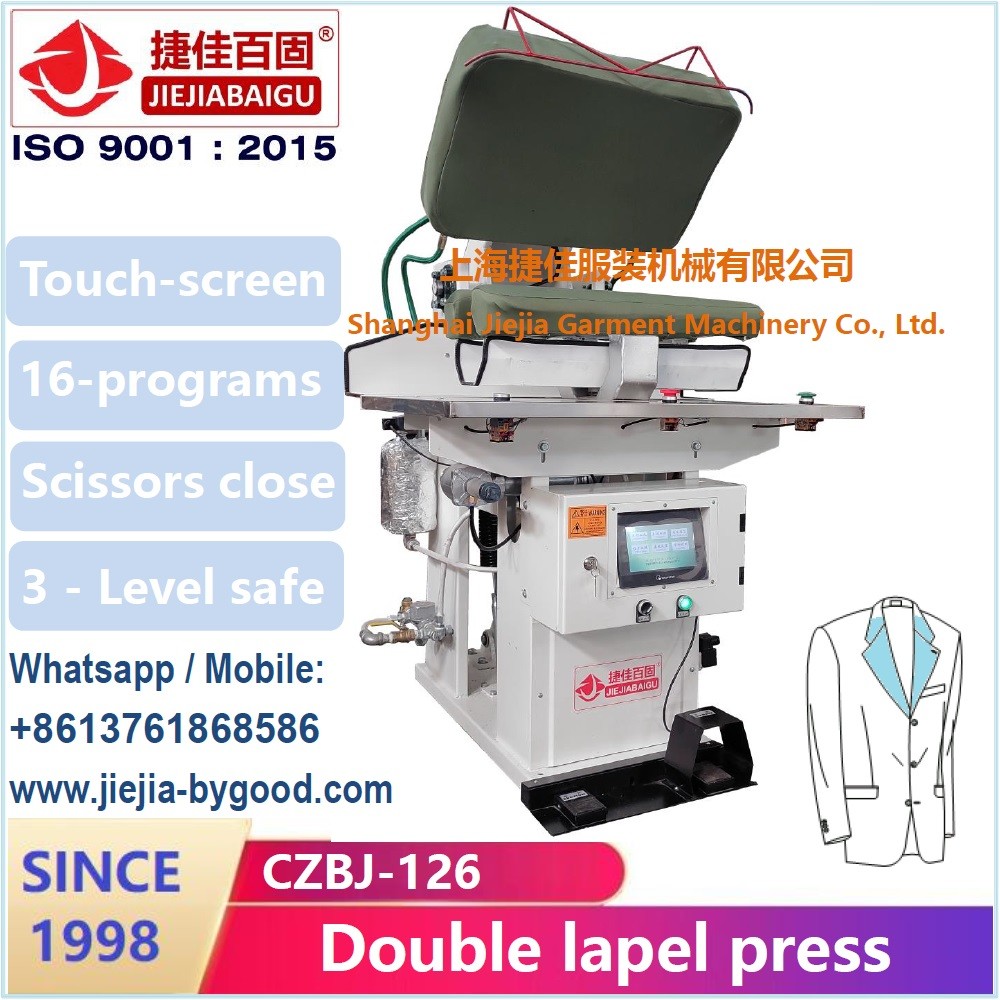

| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CZBJ-114-14 | Sleeve blocking | 900x1200x1300 |
V. Production range of machinery:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- T-shirt / Sweater pressing machine
- Non-sewing seam seal press
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
VI. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Famous pneumatic parts
